    Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push

    Ask Lasest Price
    Brand Name : BZCN
    Model Number : TS-D003
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000000 pcs per week
    Delivery Time : 3 workdays
    • Product Details
    • Company Profile

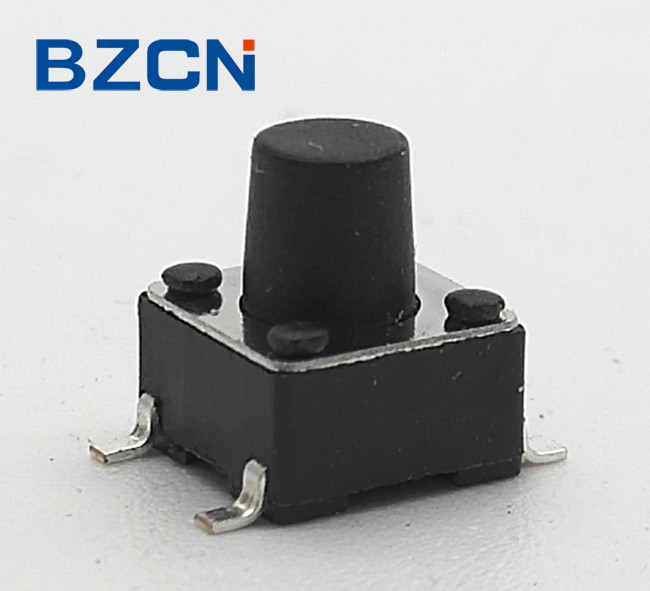

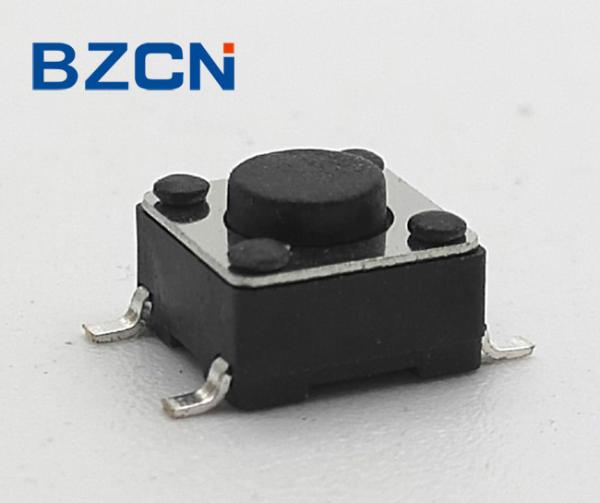

    Industrial Momentary Push Switch Snap In Top Push Tactile Switch Long Travel Stem Push

    sharp feeling snap in top push tactile switch black button long travel stem push


    switch has the highest sealing performance, making it ideal for consumer, automotive and industrial applications that must withstand erosion and harsh environments, such as regular exposure to water. The KSA MKII is also highly responsive due to its excellent tactile feel.

    • Highest tact switch sealing performance
    • Excellent tactile feel
    • Totally sealed
    • Consumer products
    • Automotive
    • Industrial
    Spec.
    Model No.TS-D003
    Terminal TypeSMD
    Switch Rating50mA DC 12V
    Operation Travel0.2±0.1mm
    Operation TpyeMomentary
    Operation Force160/180/250 gf
    Operation Life300,000 Cycles
    Contact Resistance≤100mΩ max
    Insulation Resistance≥100MΩ/m DC 250V
    Dielectric StrengthAC 250V/m 50Hz
    Operation Temperature-30℃ to + 85℃
    Operation Humidity25-85% RH
    Solder Ability260±5℃ for 3 seconds
