    Direct Press SMD Tactile Switch Momentary Red Button Surface Mount In PCB

    Ask Lasest Price
    Brand Name : BZCN
    Model Number : TS-B007
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000000 pcs per week
    Delivery Time : 3 workdays
    • Product Details
    • Company Profile

    Direct Press SMD Tactile Switch Momentary Red Button Surface Mount In PCB

    direct press SMD momentary red button micro 3.5*6.1 mm tactile switch surface mount in PCB


    tact switches feature a 3.5mm x 6.1mm packaged design. This switch is an SMT tactile switch offering reliable dome contact technology and strong tactile feedback.

    • 135 ± 50 gram force
    • PC board mounting design
    • Variety of caps available
    • Silver plated contacts


    Features.
    Improve mounting density of compoments on PCB.
    Reflow solderable.
    Sharp click feeling.
    Tape Reel packing available.
    Surface mount on PC borad
    Spec.
    Model No.TS-B007
    Terminal TypeSMD
    Switch Rating50mA DC 12V
    Operation Travel0.2±0.1mm
    Operation TpyeMomentary
    Operation Force160/180/250 gf
    Operation Life300,000 Cycles
    Contact Resistance≤100mΩ max
    Insulation Resistance≥100MΩ/m DC 250V
    Dielectric StrengthAC 250V/m 50Hz
    Operation Temperature-30℃ to + 85℃
    Operation Humidity25-85% RH
    Solder Ability260±5℃ for 3 seconds

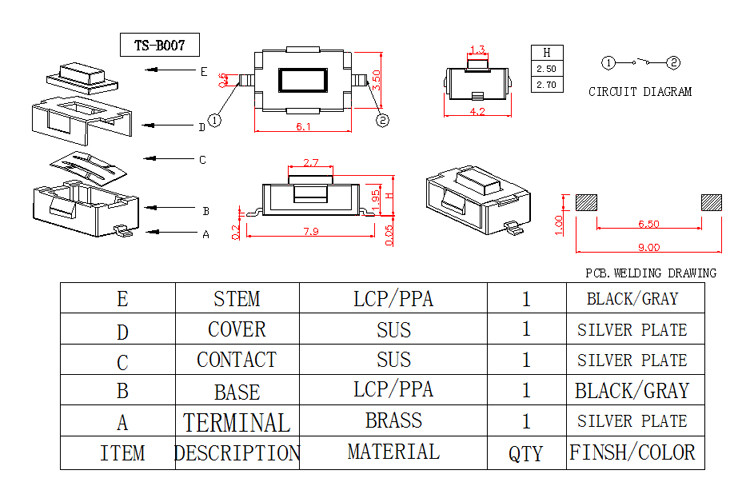

    Drawing:


    Direct Press SMD Tactile Switch Momentary Red Button Surface Mount In PCB
