Brand Name : | BZCN |
Model Number : | TS-A016 |
Certification : | SGS |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 1000000 pcs per week |
Delivery Time : | 3 workdays |
Rectangular surface mount tactile switch offers 4 termination options:
• 3.2mm x 4.2mm tactile switch
• 130 ± 50; 180 ± 50; 260 ± 50 gram force options
• Straight, reverse, and side retention termination options
• Silver plated contacts
This tact switch also offers reliable dome contact technology and a strong tactile feedback, with multiple operating forces to choose from. Applications for the TL1107 series include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation and computer/peripherals.
Applications
● Switches for car audio-visual and navigation systems, steering
wheels
and other automotive equipment
● Industrial equipment and measuring instruments
Model No. | TS-A016 | |
Terminal Type | SMD | |
Switch Rating | 50mA DC 12V | |
Operation Travel | 0.2±0.1mm | |
Operation Tpye | Momentary | |
Operation Force | 160/180/250 gf | |
Operation Life | 300,000 Cycles | |
Contact Resistance | ≤100mΩ max | |
Insulation Resistance | ≥100MΩ/m DC 250V | |
Dielectric Strength | AC 250V/m 50Hz | |
Operation Temperature | -30℃ to + 85℃ | |
Operation Humidity | 25-85% RH | |
Solder Ability | 260±5℃ for 3 seconds |

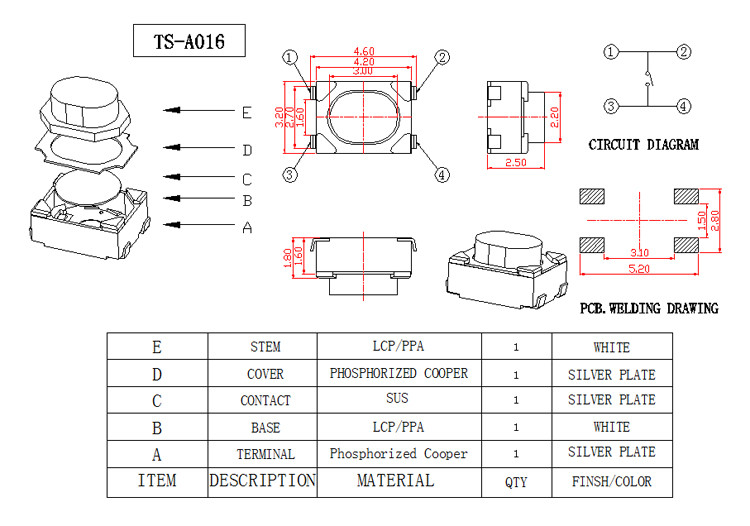

Drawing:
![]() |
