    Durable Normally Closed Tactile Switch , 12 Volt Mini Push Button Switch

    Ask Lasest Price
    Brand Name : BZCN
    Model Number : TS-F001
    Certification : SGS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per week
    Delivery Time : 2 days
    • Product Details
    • Company Profile

    Durable Normally Closed Tactile Switch , 12 Volt Mini Push Button Switch

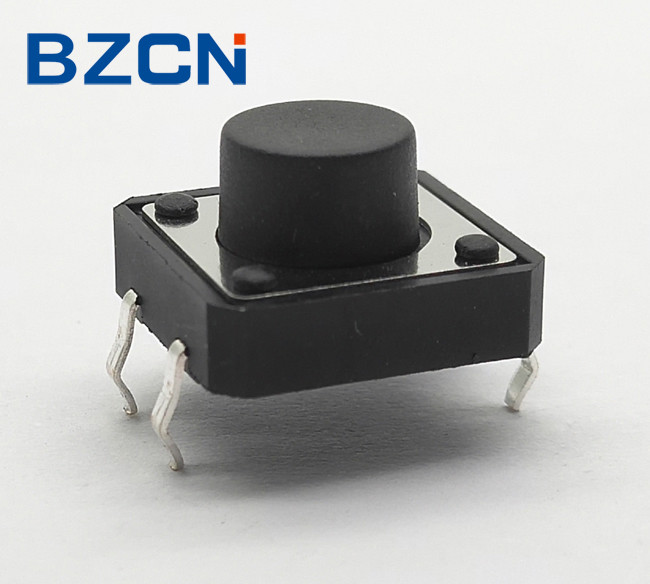

    black normal closed tact switch with waterproof 12 volt mini push button switch

    12mm tact switches are most often seen used in consumer products, instrumentation and computing equipment. Available in various heights with a snap-fit actuator option and THT and SMT terminations, the switch is long-lasting and highly responsive.

    Feature.


    high reliable contacts sealing structure.

    Larger top surface of stem improve mounting speed.

    Reflow solderable.


    Spec.


    Model No.TS-F001
    Terminal TypeDIP
    Switch Rating50mA DC 12V
    Operation Travel0.2±0.1mm
    Operation TpyeMomentary
    Operation Force180/250 gf
    Operation Life100,000 Cycles
    Contact Resistance≤100mΩ max
    Insulation Resistance≥100MΩ/m DC 250V
    Dielectric StrengthAC 250V/m 50Hz
    Operation Temperature-30℃ to + 85℃
    Operation Humidity25-85% RH
    Solder Ability260±5℃ for 3 seconds

    Reference:


    Durable Normally Closed Tactile Switch , 12 Volt Mini Push Button Switch

    Quality Durable Normally Closed Tactile Switch , 12 Volt Mini Push Button Switch for sale
